Connection with Peripheral Devices

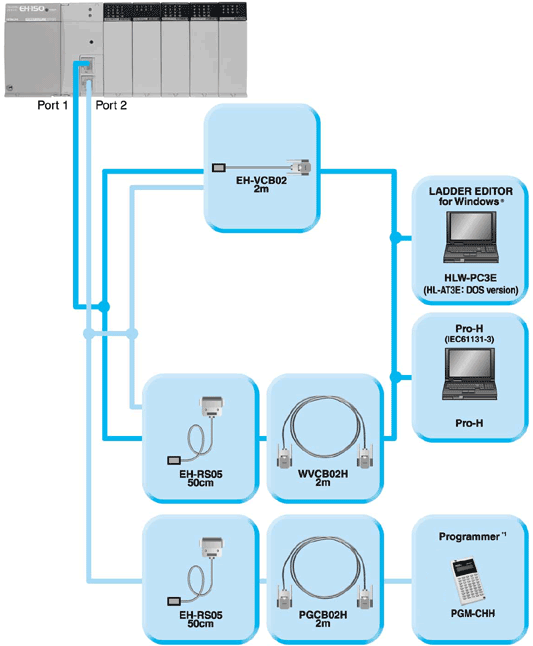

When connecting peripheral equipment, please use the cable(s) shown below. Be sure to set the mode switch of the CPU module as desired before use. (Please the manuals for the setting.)

*1

PGM-CHH should be connected to Port 2. They cannot be used via Port 1.
- Window is a registered trademark of Microsoft Corp. In the U.S. and other countries.
