Transistor Output Module

Item		Specification
Type		EH-YT8	EH-YT16	EH-YTP8	EH-YTP16	EH-YTP16S (with short-circuit protection)

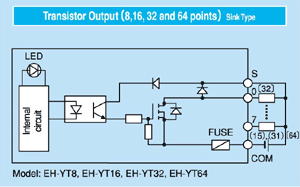

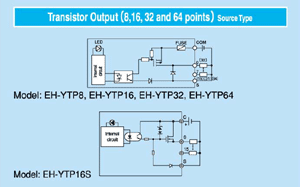

Output specification		Transistor output (sink type)		Transistor output (source type)
Rated load voltage		12/24 V DC (+10%, -15%)		12/24 V DC (+10%, -15%)
Minimum switching current		1mA		1mA
Leak current		0.1mA		0.1mA
Maximum load current	1 point	0.5A
Maximum load current	1 common	2.4A	4A	2.4A	4A	5A
Output responese time	OFF→ON	0.3 ms or less		0.3 ms or less
Output responese time	ON→OFF	1 ms or less		1 ms or less
Number of output of points		8 points / mudule	16 points / mudule	8 points / mudule	16 points / mudule
Number of common points		1 common point / 8 outputs*	1 common point / 16 outputs*	1 common point / 8 outputs*	1 common point / 16 outputs*
Surge removal circuit		Diode		Diode		Built-in
Fuse *1		4 A/common	8 A/common	4 A/common	8 A/common	None
Insulation method		Photocoupler insulation		Photocoupler insulation
Output display		LED (green)		LED (green)
Weight		Approximately 0.16kg(0.35lb.)
External connection		Removable screw terminal block (M3)		Removable screw terminal block (M3)
Internal current consumption (5 V DC)		Approximately 30mA	Approximately 50mA	Approximately 30mA	Approximately 50mA
External power supply *2 (For supplying power to the S terminal)		12/24 V DC (+10%, -15%) (maximum 30mA)		12/24 V DC (+10%, -15%) (maximum 30mA)

*1: The module needs to be repaired in case a load short causes a blown fuse. Funthermore, the fuse cannot be replaced by the user.
*2: It is necessary to supply 12/24 V DC externally to the S terminal.
