32-/64-point DC Input Module
| Item |
Specification |
| Type |
EH-XD32 |
EH-XD32E |
EH-XDL32E |
EH-XD64 |
| Input specification |
DC input |
| Input voltage |
24 V DC |
| Allowable input voltage range |
19.2 to 30V DC |
20.4 to 28.8 V DC |
| Input impedance |
Approximately 5.6 kΩ |

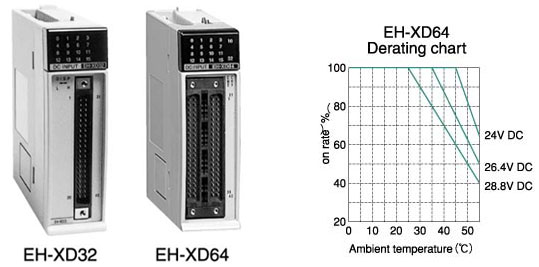

| Input derating |
— |
See the derating chart |
| Input current |
Approximately 4.3mA |
| Operating voltage |
ON voltage |
15 V or more |
| OFF voltage |
5 V or less |
| Input lag |
OFF→ON |
5 ms or less |
1 ms or less |
16 ms or less |
1 ms or less |
| ON→OFF |
5 ms or less |
1 ms or less |
16 ms or less |
1 ms or less |
| Number of input points |
32 points / module |
64 points / module |
| Number of common points |
8 points / 1 common (common terminal is 4*1) |
| Polarity |
None |
| Insulation method |
Photocoupler insulation |
| Input display |
LED (green)*2 |
| Weight |
Approximately 0.15kg(0.33lb.) |
Approximately
0.14kg(0.31lb.) |
| External connection |
Connector |
Euro-terminal |
Connector |
| Internal current consumption (5V DC) |
Approximately
100mA |
Approximately
60mA |
Approximately
70mA |
- *1
- Commons are connected internally.
- *2
- There are 16 LED displays. Use the toggle switch to select a group of input points to be displayed.
- Terminal Block for 32/6 points I/O module
- Cables for 32/64-point module

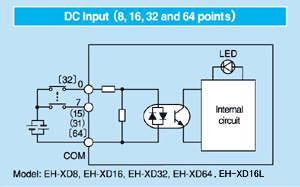

Internal Circuit Diagram
|
