Communication Module [PROFIBUS® Master/Slave Module]

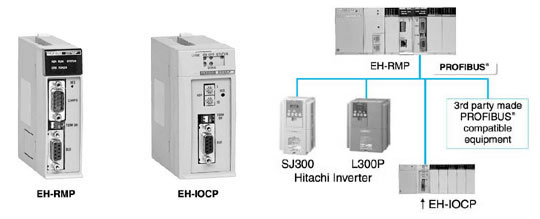

System configuration
General Specifications
| Item |
Specification |
| EH-RMP |
EH-IOCP |
| Current consumption |
5 V DC, 600mA |
| Weight |
Approximately 0.13 kg (0.29 lb.) |
Approximately 0.16 kg (0.35 lb.) |
| Mounted slot position |
Only slot 0 to 2 on basic base, Max.
two times / CPU |
CPU Slot |
Performance Specifications
| Item |
Specification |
| EH-RMP |
| Number of installed units |
2 units / CPU (can only be installed in slots 0 to 2) |
| Number of supported slave units |
Maximum of 124 units. However, a repeater is required to connect 32 or more units. |
| Number of output words |
256 words |
| Number of input words |
256 words |
| Baud rate: Segment length |
9.6 kpbs : 1,200 m
19.2kpbs : 1,200 m
45.45 kpbs : 1,200 m
93.75 kpbs : 1,200 m
187.5 kpbs : 1,000 m
500 kpbs : 400 m
1,500 kpbs : 200 m
3 Mbps : 100 m
6 Mbps : 100 m
12 Mbps : 100m |
| Self-diagnostics |
System ROM / RAM check Watchdog timer |
| GSD file |
File name: Hita1004.gsd Please contact Hitachi sales office. |
Note
1 : EH-RMP is supported by EH-CPU316A / 516 / 548.
2 : Please prepare the configuration software for set-up.
| Item |
Specification |
| EH-IOCP |
| Number of installed I/O modules |
16 units / EH-IOCP
(use the EH-IOCH2 to install 9 or more units.) |
| Node address setting range |
1 to 99 |
| Input/output capacity |
208 words |
| Data update time |
5 ms |
| Baud rate: Segment length |
9.6 kpbs : 1,200 m
19.2kpbs : 1,200 m
45.45 kpbs : 1,200 m
93.75 kpbs : 1,200 m
187.5 kpbs : 1,000 m
500 kpbs : 400 m
1,500 kpbs : 200 m
3 Mbps : 100 m
6 Mbps : 100 m
12 Mbps : 100m |
| Self-diagnostics |
System ROM / RAM check Watchdog timer |
| GSD file |
File name: Hita049.gsd Please contact our sales department. |
Supported I/O Modules
The I/O modules that are supported by the EH-IOCP are as follows:
| Type |
Input size
(word) |
Output size
(word) |
| EH-XD8 |
1 |
0 |
| EH-XD16 |
| EH-XA16 |
| EH-XAH16 |
| EH-XD32 |
2 |
0 |
| EH-XD64 |
4 |
0 |
| EH-PT4 |
4 |
0 |
| EH-AX44 |
8 |
0 |
| EH-AX8V |
| EH-AX8H |
| EH-AX8I |
| EH-AX8IO |
8 |
0 |
| EH-AXH8M |
| EH-TC8 |
| Type |
Input size
(word) |
Output size
(word) |
| EH-YT8 |
0 |
1 |
| EH-YT16 |
| EH-YTP8 |
| EH-YTP16 |
| EH-YTP16S |
| EH-YS4 |
| EH-YR8B |
| EH-YR12 |
| EH-YR16 |
| EH-YT32 |
0 |
2 |
| EH-YTP32 |
| EH-YT64 |
0 |
4 |
| EH-YTP64 |
| EH-AY22 |
0 |
8 |
| EH-AY4V |
| EH-AY4H |
| EH-AYH8M |
| EH-POS |
4 |
4 |
| EH-POS4 |
| EH-CU |
5 |
3 |
| EH-CUE |
PROFIBUS is a registered trademark of Profibus Nutzer Organization
|
