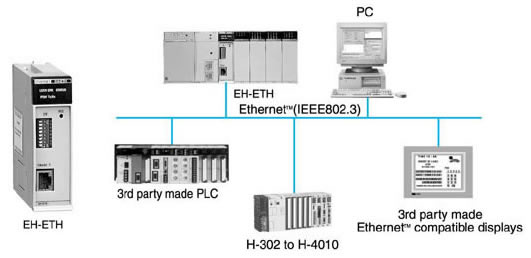

Communication Module [EthernetT Module]
General Specifications
| Item |
Specification |
| Internal current consumption |
5 V DC, 260mA |
| Weight |
0.15 kg (0.33 lb.) |
| Mounted slot position |
Only slot 0 to 2 on basic base, Max. two times / CPU |
Performance Specifications
| Item |
Specification |
| Transfer specification |
Ethernet standard |
IEEE802.3 standard |
| Transfer modulation method |
Base band |
| Medium access method |
CSMA / CD |
| Transfer speed |
10 Mbps |
| Maximum segment length |
100 (m) |
| ASR connection |
Number of simultaneous connections: Maximum 6
Transmission data: Maximum 1,454 bytes/try |
| Task code communication |
Number of simultaneous connections: Maximum 4 |
Functional Specifications
| Item |
Specification |
| Setup function |
- Select the setup mode using a DIP switch, and perform initial settings such as the IP address, transmission operation specification, and transmission/reception area specification using a general-purpose Web browser.
- The IP address can also be set by programming with a ladder program.
|
| Auto Sending / Receiving function, event transmission function |
- Data can be transmitted and received periodically by specifying an internal output signal in a table format.
- Data can be transmitted and received by signal variation (event) in a ladder program.
|
| Task code communication |
- Either TCP / IP or UDP / IP can be specified.
- H series task code communication can be performed.
|
| Test function |
- Internal loop and external loop check functions are supported.
- One-to-one transmission / reception test function is supported.
|
Note : EH-ETH is supported by EH-CPU316A / 516 / 548.
Ethernet is a trademark of Xerox Corporation.
|
