Programming tools

LADDER EDITOR for Windows® (HLW-PC3E : For Windows® 95/98/NT/2000/XP)

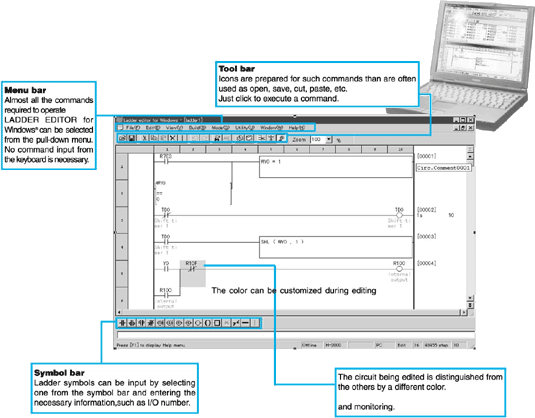

LADDER EDITOR for Windows® , which can be used with all H/EH series PLCs, realizes comfortable project management, thanks to its user-friendly features based on the distinctive functions of the Windows® operating system, such as icons, menu bar, and mouse operation. Such operations as cut, copy, paste, and save can be done in the same way as on other Windows® based software. Execution of various commands and input of ladder symbols can be easily performed using a mouse. The features of LADDER EDITOR for Windows® help users program efficiently.

Pro-H

Pro-H is the universally usable 32-bit programming software for all Hitachi H/EH series PLCs.

• Standard according to IEC 61131-3
• Additional special instructions for H/EH series PLCs.

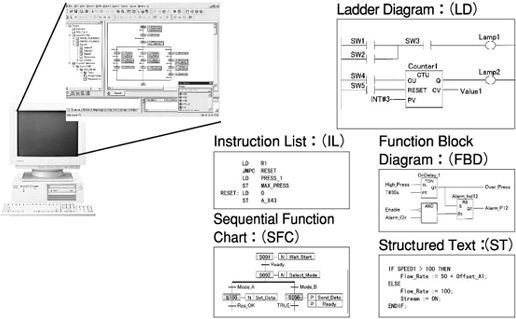

• 5 program editors (LD, IL, FBD, SFC, and ST)
• System requirements : Windows® 95/98/NT® 4.0

- LADDER EDITOR DOS version (HL-AT3E) is also available.

Programmer

Command language programmer [PGM-CHH]

- Window is a registered trademark of Microsoft Corp. In the U.S. and other countries.
