Características

En un cuerpo pequeño posee capacidades de la próxima generación.
'Para sistemas de control de tamaño pequeños y medianos del mañana'

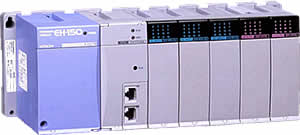

EH-150

1 : Two communication ports are provided as standard in the small-sized CPU.

2 : A memory board that can read and write programs can be loaded in the CPU. (EH-CPU316A, 516, 548)

3 : The compact and stylish EH-150 meets various automation requirements

4 : The modem connection capability incorporated as a standard feature allows for 38.4kbps high-speed communication. (EH-CPU208A, 316A, 516, 548)

5 : The state-of-art technologies and functions realize high-speed processing of complicated control.

6 : Compatibility with H series PLC utilizes valuable existing user programs.

7 : The EH-150 is easy to maintain even after installed in a machine.

Features

1 : Compatibility with H series PLC utilizes valuable existing user programs

EH-150's CPU has two communication ports : Port 1 and Port 2.

Port 1 can be used as a dedicated port and can be switched to a general-purpose port. It also supports the modem control function (except for EH-CPU104A).

Port 2 can be used as a dedicated port for programming devices. When a general-purpose port is designated, the TRNS command can be used, making operation easier and improving connectivity.

The interface can be selected from RS-232C, RS-422, and RS-485 for port 1 general-purpose port and the port1 dedicated port (EH-CPU316A, EH-CPU516, EH-CPU548).

When Port 1 is used as a dedicated port

Connection When Port 1 is used as a dedicated port

Multi-link connection of display

(EH-CPU316, EH-CPU516, EH-CPU548) Port 1 can be switched among RS-232C, RS-422, and RS-485. Task code communication with a station number by HI-PROTOCOL can be supported using RS-422.

Multi-link connection of display

When Port 1 is used as a general-purpose port

Connection When Port 1 is used as a general-purpose port

2 : A memory board that can read and write programs can be loaded in the CPU.(EH-CPU316A, EH-CPU516, EH-CPU548)

memory board

Transferring and comparing programs can be done without a programming device. The CPU can be operated with the program on the memory board.

A memory board that can store data (384k words) in addition to the program is also available (EH-MEMD). The memory board employs a battery-less Flash memory to make maintenance easier.



Sizes of programs that can be transferred to each CPU
CPU model Program transfer
size		 Memory board
→CPU		 Memory board
←CPU		 Memory board
= CPU
EH-MEMP EH-MEMD EH-MEMP EH-MEMD EH-MEMP EH-MEMD
EH-CPU516 16 k steps
or less		 ○ ○ ○ ○ ○ ○
Over 16 k steps Not Not — — Not Not
EH-CPU548 16 k steps
or less		 ○ ○ ○ ○ ○ ○
Over 16 k steps
and
48 k steps
or less		 ○ — ○ — ○ —

○ : Executable
Not : Not executable because of error
— : This event does not occur

3 : The compact and stylish EH-150 meets various automation requirements

As many as 704 I/O points can be configured on the EH-150, which is only 462.5 mm (W) × 100 mm (H) × 109 mm (D) in size.

The EH-150' s compact size helps reduce machine size and save installation space, and its bright color and sleek design adds aesthetic appeal to the entire system.

4 : The modem connection capability incorporated as a standard feature allows for 38.4 kbps high-speed communication (EH-CPU316A, 516, 548)

Port 1 of EH-150' s CPU (except for EH-CPU104A) has a modem connection function that supports 38.4 kbps high-speed communication.

The control operation can be remotely monitored through the public telephone line.

The clock function also incorporated as a standard feature realizes real-time control without an additional module.

LADDER EDITOR for WindowsW Ver. 2.0 or after has the dial-up function. It is possible to connect to the public telephone line using the software.

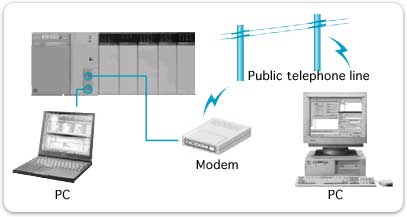

The modem connection

Point5 : The state-of-art technologies and functions realize high-speed processing of complicated control

  • The EH-150 contains a 32-bit RISC processor (Super H series made by Hitachi, Ltd.) that allows high-speed operations.
  • To protect valuable programs from being erased, the EH-150 has a Flash memory for storing user programs.
  • As many as 153 commands are available (EH-CPU516/548). Commands such as REFRESH assure quick response to high-speed operation of assembly machines.

SuperH

6 : Compatibility with H series PLC utilizes valuable existing user programs

  • The same programming software 'LADDER EDITOR' can be used.
  • LADDER EDITOR for Windows® provides easier programming and debugging with its comfortable operation environment.
  • Various types of displays and monitoring software compatible with the H series PLC can be used as peripheral equipment

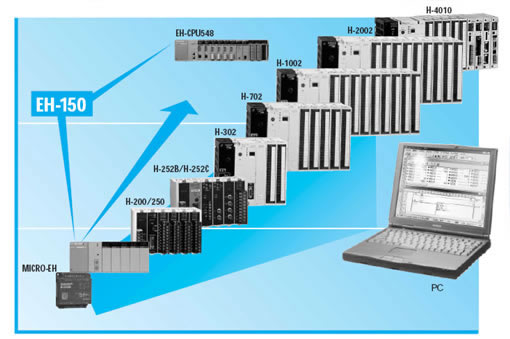

Illust for point6

7 : The EH-150 is easy to maintain even after installed in a machine

  • Flash memory protects user programs even if the power fails.
  • Programs can be easily modified even while the CPU is running. This helps reduce the time required for a test run.
  • Easy installation by snapping on a DIN rail
  • Removable terminal block for easy set-up
  • The battery for data memory back-up can be replaced by opening the hinged front cover of the CPU.

EH-150
