Point 7 : 20 / 40 / 64-point type

I/O points is up

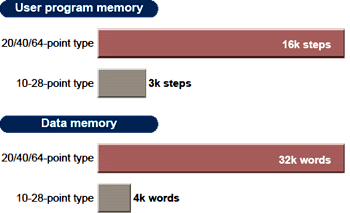

User program memory, Data memory is up.

Program capacity is extended to 16k steps, and data memory capacity is extended to 32k words, which enables 20/40/64-point type to support middle range

New FUN commands

54 kinds of commands are added. The added FUN commands are a data conversion command, a floating point arithmetic, etc.

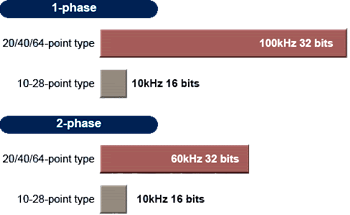

4ch, 100kHz, 32 bits high-speed counter

The counter of 20/40/64-point type can support up to 100kHz (single phase) or 60kHz (2-phase) pulses. The 16-bit counter is extended to the 32-bit counter.

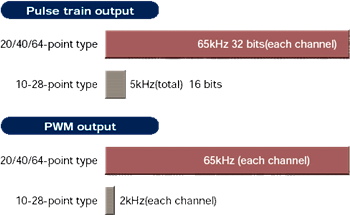

Pulse train output

A pulse output with an output frequency of 65kHz is possible for 20/40/64-point type. Moreover, the number of output pulses can be set up by 32bits.

Selectable option boards

A function is expandable by attaching an option board In a basic unit.
With RS-232C or RS-422/485 or USB-232C convertion communication board, communication port 2 can be used as an programming port or a general-purpose port.
With Memory board, it can be used for backup of a user program etc.
A communication board and a memory board can be used together.
