20/40/64 point type Input / Output Specifications

DC input

Item Specification
X0, X2, X4, X6 Except the following
Input voltage 24V DC
Allowable input voltage range 0 to 30V DC
Input impedance Approximately 2.7kΩ Approximately 4.7kΩ
Input current 8mA typical 4.8mA typical
Operating
voltage		 ON voltage 18 V DC (min) / 4.5mA (max) 18 V DC (min) / 3.3mA (max)
OFF voltage 5 V DC (min) / 1.8mA (max) 5 V DC (min) / 1.6mA (max)
Input lag OFF → ON 2 to 20 ms (user setup is possible.)
ON → OFF 2 to 20 ms (user setup is possible.)
Polarity None
Insulation system Photocoupler insulation
Input display LED (Green)
External connection Removable type screw terminal block (M3)
Internal Circuit DC input

Relay output

Item Specification
Rated load voltage 5 to 250V AC, 5 to 30V DC
Minimum switching current 10mA( 5V DC )
Maximum load current 1 circuit 2A (24V DC, 240V AC)
1 common 5A
Output response time OFF → ON 15 ms (max)
ON → OFF 15 ms (max)
Surge removal circuit None
Fuse None
Insulation system Relay insulation
Output display LED (Green)
Externally supplied power
(for driving relays)		 Not used
Contact life 20,000,000 times (mechanical)
200,000 times (electrical : 2A)
Insulation 1500V or more (external - internal)
500V or more (external - external)
External connection Removable type screw terminal block (M3)
Internal Circuit Relay output

DC Transistor output

Item Specification
Rated load voltage 24/12 V DC (+10 %, -15 %)
Minimum switching current 10mA
Leak current 0.1mA (max)
Maximum
load current		 1 circuit 0.5 A 24V DC
0.3 A 12V DC
1 common 2.0 A
Output
response time		 OFF → ON 5us (max) / 24 V DC 0.2A
ON → OFF 5us (max) / 24 V DC 0.2A
Surge removing circuit None
Fuse None
Insulation system Photocoupler insulation
Output display LED (green)
Externally supplied power 12 to 30V DC
Insulation 1500V or more (external - internal)
500V or more (external - external)
Output voltage drop 0.3 V DC (max)
External connection Removable type screw terminal block (M3)
Internal Circuit DC Transistor output

DC Transistor output

Item Specification
Rated load voltage 24/12 V DC (+10 %, -15 %)
Minimum switching current 10mA
Leak current 0.1mA (max)
Maximum load current 1 circuit 0.5 A
1 common 64-point type : 3A
40-point type : 5A
20-point type : 2A
Output response time OFF → ON 0.1 ms (max) 24 V DC 0.2A
ON → OFF 0.1 ms (max) 24 V DC 0.2A
Surge removing circuit None
Fuse None
Insulation system Photocoupler insulation
Output display LED (green)
Externally supplied power 12 to 30V DC
Insulation 1500V or more (external - internal)
500V or more (external - external)
Output voltage drop 0.3 V DC (max)
External connection Removable type screw terminal block (M3)
Internal Circuit DC Transistor output

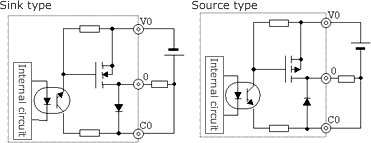

DC Transistor output (ESCP type) ... LCDC-Low Current

Item Specification
Rated load voltage 24/12 V DC (+10 %, -15 %)
Minimum switching current 10mA
Leak current 0.1mA (max)
Maximum load current 1 circuit 0.7 A
1 common 64-point type : 3A
40-point type : 5A
20-point type : 2.8A
Output response time OFF → ON 0.5 ms (max) / 24 V DC
ON → OFF 0.5 ms (max) / 24 V DC
Surge removing circuit None
Fuse None
Insulation system Photocoupler insulation
Output display LED (green)
Externally supplied power 12 to 30V DC
Insulation 1500V or more (external - internal)
500V or more (external - external)
Output voltage drop 0.3 V DC (max)
External connection Removable type screw terminal block (M3)
Internal Circuit DC Transistor output (ESCP type) ... LCDC-Low Current

DC Transistor output (ESCP type) ... HCDC-High Current

Item Specification
Rated load voltage 24/12 V DC (+10 %, -15 %)
Minimum switching current 10mA
Leak current 0.1mA (max)
Maximum load current 1 circuit 1.0 A
1 common 3.0 A
Output response time OFF → ON 0.5 ms (max) / 24 V DC
ON → OFF 0.5 ms (max) / 24 V DC
Surge removing circuit None
Fuse None
Insulation system Photocoupler insulation
Output display LED (green)
Externally supplied power 12 to 30V DC
Insulation 1500V or more (external - internal)
500V or more (external - external)
Output voltage drop 0.3 V DC (max)
External connection Removable type screw terminal block (M3)
Internal Circuit DC Transistor output (ESCP type) ... HCDC-High Current
